OAuth 2.0 with Gmail over IMAP for web applications

OAuth is an open protocol to allow secure API authorization in a simple and standard method from desktop and web applications.

This article describes using OAuth 2.0 to access Gmail IMAP and SMTP servers using .NET IMAP component in web application scenario (ASP.NET/ASP.NET MVC). You can also use OAuth 2.0 for installed applications.

Google.Apis

Use Nuget to download “Google.Apis.Auth” package.

Import namespaces:

// c#

using Google.Apis.Auth.OAuth2;
using Google.Apis.Auth.OAuth2.Flows;
using Google.Apis.Auth.OAuth2.Requests;
using Google.Apis.Auth.OAuth2.Responses;

using Limilabs.Client.Authentication.Google;

using Limilabs.Client.IMAP;
' VB.NET

Imports Google.Apis.Auth.OAuth2
Imports Google.Apis.Auth.OAuth2.Flows
Imports Google.Apis.Auth.OAuth2.Requests
Imports Google.Apis.Auth.OAuth2.Responses

Imports Limilabs.Client.Authentication.Google

Imports Limilabs.Client.IMAP

Register Application

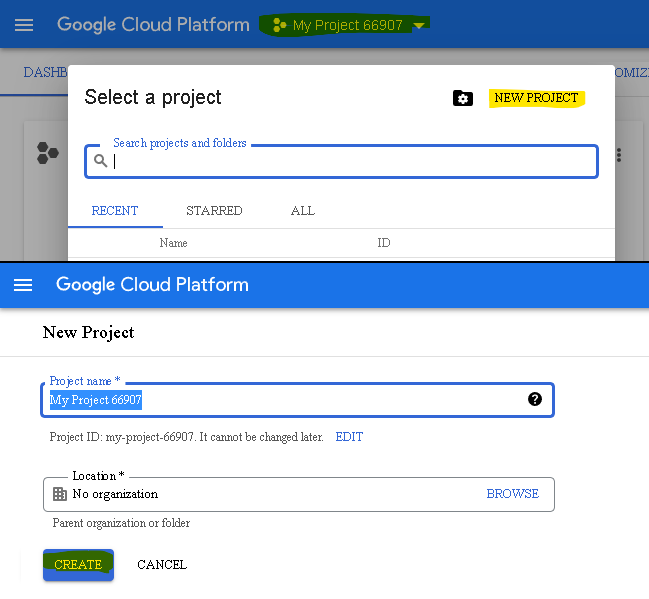

Before you can use OAuth 2.0, you must register your application using the Google Developers Console. After you’ve registered, go to the API Access tab and copy the “Client ID” and “Client secret” values and specify “Redirect URI“, which you’ll need later.

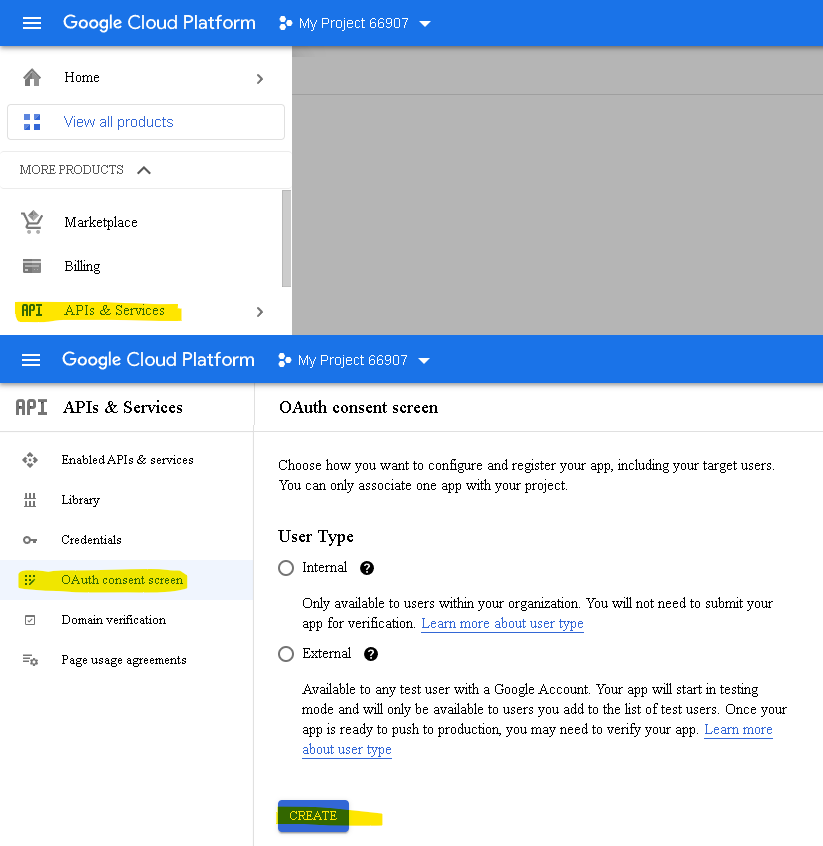

At least product name must be specified:

Now create credentials:

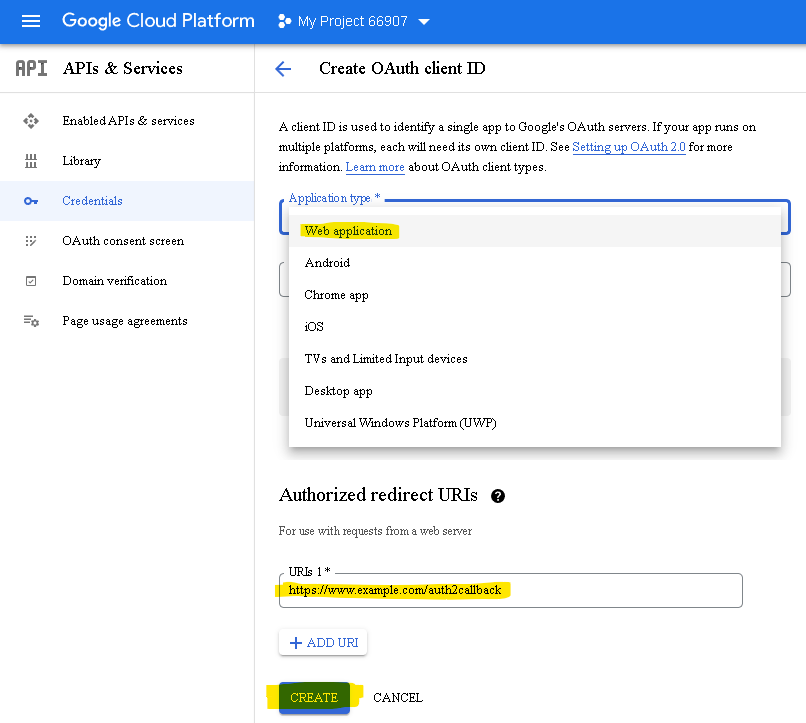

Specify redirect URI:

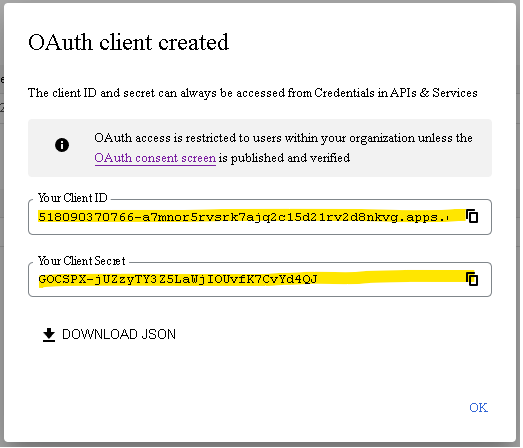

After you’ve registered, copy the “Client ID” and “Client secret” values, which you’ll need later:

Now we can define clientID, clientSecret, redirect url and scope variables, as well as Google OAuth 2.0 server addresses. Scope basically specifies what services we want to have access to. In our case it is user’s email address and IMAP/SMTP access:

// c#

string clientID = "XXX.apps.googleusercontent.com";
string clientSecret = "IxBs0g5sdaSDUz4Ea7Ix-Ua";
string redirectUri = "http://www.yourdomain.com/oauth2callback";

var clientSecrets = new ClientSecrets
{
    ClientId = clientID,
    ClientSecret = clientSecret
};

var credential = new GoogleAuthorizationCodeFlow(new GoogleAuthorizationCodeFlow.Initializer
{
    ClientSecrets = clientSecrets,
    Scopes = new[] { GoogleScope.ImapAndSmtp.Name, GoogleScope.EmailScope.Name}
});
' VB.NET

Dim clientID As String = "XXX.apps.googleusercontent.com"
Dim clientSecret As String = "IxBs0g5sdaSDUz4Ea7Ix-Ua"
Dim redirectUri As String = "http://www.yourdomain.com/oauth2callback"

Dim clientSecrets = New ClientSecrets() With { _
	Key .ClientId = clientID, _
	Key .ClientSecret = clientSecret _
}

Dim credential = New GoogleAuthorizationCodeFlow(New GoogleAuthorizationCodeFlow.Initializer() With { _
	Key .ClientSecrets = clientSecrets, _
	Key .Scopes = New () {GoogleScope.ImapAndSmtp.Name, GoogleScope.EmailScope.Name} _
})

Turn on Google+ API

Remember to turn on Google+ API:
Turn on Google+ API

It is required to obtain email address of the user.

Obtain an OAuth 2.0 access token

Now we’ll create authorization url:


AuthorizationCodeRequestUrl url = credential.CreateAuthorizationCodeRequest(redirectUri);

' VB.NET

Dim url As AuthorizationCodeRequestUrl = credential.CreateAuthorizationCodeRequest(redirectUri)

Now we need to redirect the client:

// c#

return new RedirectResult(url.Build().ToString());

' VB.NET

Return New RedirectResult(url.Build().ToString())

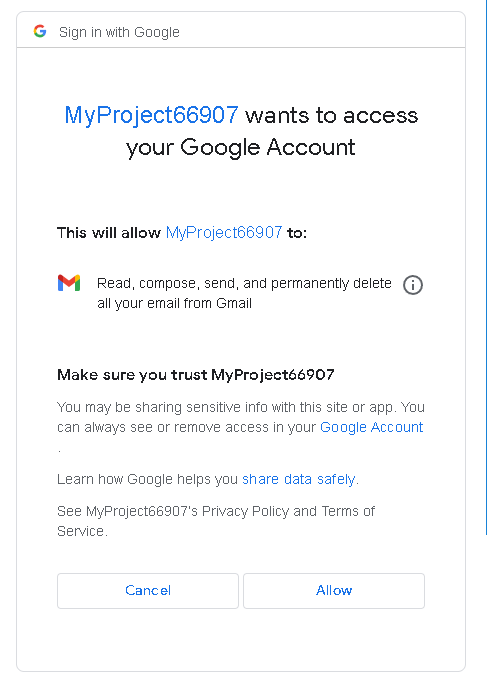

At this point user is redirected to Google to authorize the access:

After this step user is redirected back to your website (http://www.yourdomain.com/oauth2callback), with code request parameter:
http://www.yourdomain.com/oauth2callback?code=4/5Y7M4cARD9hrt0nuKnQa0YgtYMasdbwprRtIIjk4Fus#

// c#

public class OAauth2CallbackController : Controller
{
    public ActionResult Index(string code)
    {
        ...
    }
}
' VB.NET

Public Class OAauth2CallbackController
    Inherits Controller
    Public Function Index(code As String) As ActionResult
        ...
    End Function
End Class

Following is this callback code. Its purpose is to get a refresh-token and an access-token:

// c#

string authCode = code;

TokenResponse token = await credential.ExchangeCodeForTokenAsync("", authCode, redirectUri, CancellationToken.None);

string accessToken = token.AccessToken;
' VB.NET

Dim authCode As String = code

Dim token As TokenResponse = Await credential.ExchangeCodeForTokenAsync("", authCode, redirectUri, CancellationToken.None)

Dim accessToken As String = token.AccessToken

An access token is usually valid for a maximum of one hour, and allows you to access the user’s data. You also received a refresh token. A refresh token can be used to request a new access token once the previous expired.

Access IMAP/SMTP server

Finally we’ll ask Google for user’s email and use LoginOAUTH2 method to access Gmail’s IMAP server:

// c#

GoogleApi api = new GoogleApi(accessToken);
string user = api.GetEmailPlus();

using (Imap imap = new Imap())
{
    imap.ConnectSSL("imap.gmail.com");
    imap.LoginOAUTH2(user, accessToken);

    imap.SelectInbox();
    List<long> uids = imap.Search(Flag.Unseen);

    foreach (long uid in uids)
    {
        var eml = imap.GetMessageByUID(uid);
        IMail email = new MailBuilder().CreateFromEml(eml);
        Console.WriteLine(email.Subject);
    }
    imap.Close();
}
' VB.NET

Dim api As New GoogleApi(accessToken)
Dim user As String = api.GetEmailPlus()

Using imap As New Imap()
	imap.ConnectSSL("imap.gmail.com")
	imap.LoginOAUTH2(user, accessToken)

	imap.SelectInbox()
	Dim uids As List(Of Long) = imap.Search(Flag.Unseen)

	For Each uid As Long In uids
		Dim eml = imap.GetMessageByUID(uid)
		Dim email As IMail = New MailBuilder().CreateFromEml(eml)
		Console.WriteLine(email.Subject)
	Next
	imap.Close()
End Using

Refreshing access token

An access token is usually short lived and valid for a maximum of one hour. The main reason behind this is security and prevention of replay attacks. This means that for long-lived applications you need to refresh the access token.

Your refresh token will be sent only once – don’t loose it!

We recommend storing entire TokenResponse object received from GoogleAuthorizationCodeFlow.ExchangeCodeForTokenAsync method call. This object contains both: refresh token and access token, along with its expiration time.

The process of refreshing access token is simple:

// c#

TokenResponse refreshed = await credential.RefreshTokenAsync("", token.RefreshToken, CancellationToken.None);

' VB.NET

Dim refreshed As TokenResponse = Await credential.RefreshTokenAsync("", token.RefreshToken, CancellationToken.None)
